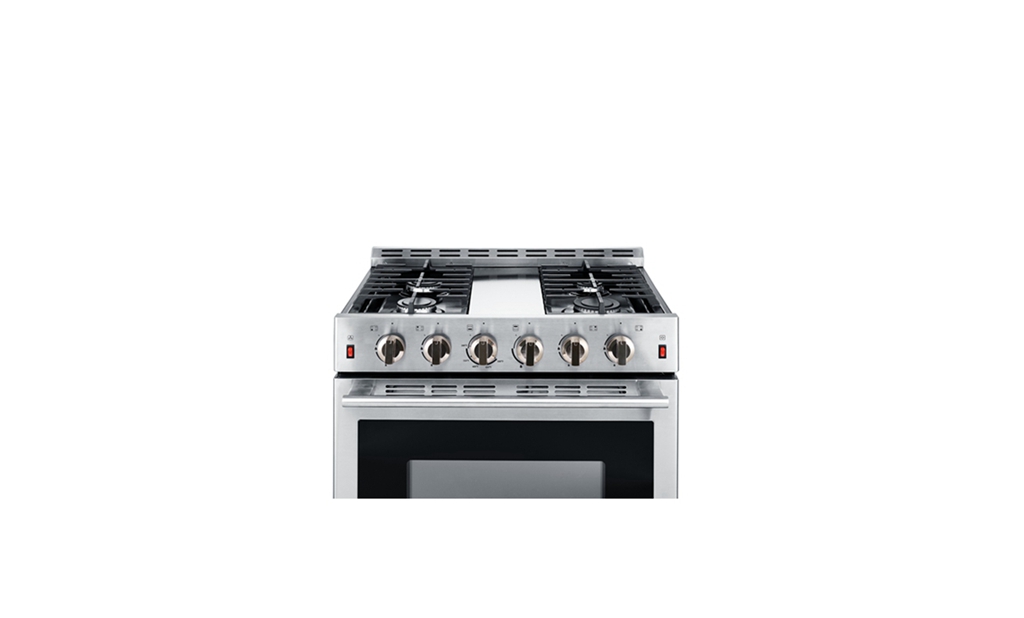

Freestanding Gas Oven And Cooktop is a multifunctional kitchen appliance that uses 1.2mm thick 304 stainless steel with a size of 757×708×1191mm. It is suitable for narrow spaces with an independent structure and can be flexibly deployed without embedding. It is designed for home and small commercial kitchens.
| Model No | FF1000-B |
| Service System | Free Spare Parts |
| Appropriate Types | Household |
| Kind Of Power | Gas |
| Fire Method | Electronic Ignition |
| Characteristic | Traditional |
| Installation Method | Freestanding |
| Material | Stainless Steel |
| Features | With Grill, With Oven |
| Certification | Csa |
| Place Of Origin | China |
| Unit Size (mm) | 757*708*1191 |
| Gas Type | Ng/Lpg |
| Qty/40'HQ | 84pcs |
Material parameters: The 304 stainless steel body has passed the 72-hour salt spray test, the surface brushing process roughness is ≤0.8μm, and the oil adhesion rate is reduced by 65%.
Structural design: The gas stove area uses a 4mm thickened cast iron stove rack, and the oven cavity is equipped with an aluminum-plated liner, and the thermal efficiency is increased to 60%.
Gas compatibility: supports natural gas and liquefied gas, valve flow control accuracy is ±1.5%, and the firepower fluctuation is ≤3% when switching.
Energy efficiency performance: The heat load of the stove eye is 3.2kW/3.0kW, and it only takes 3 minutes and 30 seconds to boil 1.5L of water with a single stove.
Ignition performance: Pulse ignition module, equipped with CR2032 lithium battery backup power supply, can continue to ignite for 24 hours after power failure.
Protection design: Child lock passed 50,000 press tests, gas leakage automatic cut-off response time <1 second, in line with CSA Z21.58 standard.
Oven parameters: capacity 45L, 3-layer chrome grill, temperature control range 50-250℃, support hot air circulation.
Stove eye performance: Dual-zone independent fire control, cast iron burner thermal efficiency ≥68%, frying oil temperature reaches 200℃ in only 75 seconds.
Layout optimization: gas stove and oven are vertically integrated, the operating table height is ergonomic, 20cm heat dissipation space is reserved on the top, and the whole machine occupies only 0.54㎡.
Brand logo: supports laser engraving or screen printing, and the customized area covers the control panel and oven door.
Packaging standard: seven-layer corrugated carton, support Pantone spot color printing.
Applied to multi-generational families, it helps to efficiently handle complex meals. Gas stove synchronous operation + oven baking cake, complete 8 meals in 1 hour, and reduce cleaning time by 30%.
Applied to healthy light food restaurants, it helps to accurately control temperature cooking. The combination of low-temperature slow-baked salmon in the oven and quick-fried seasonal vegetables on the gas stove can achieve a single meal delivery efficiency of 50 servings/hour, which is suitable for high-protein diet needs.
Applied to baking training schools, it helps to standardize practical teaching. The precise temperature control of the oven supports the fermentation of French croissants and European bread, with an average of 20 batches of teaching demonstrations per day.
Applied to boutique coffee shops, it helps to improve additional services. The oven makes freshly baked panini and the gas stove fries Benedict eggs synchronously, and the number of customer orders processed during the lunch peak is increased by 40%.
Jiangmen Minsheng Kitchen Equipment Co., Ltd. was established in year 2000. The factory is located in Jianghai District, Jiangmen City, Guangdong Province. It is a high-tech household appliance manufacturing enterprise with R & D, production and sales. Focus in the production and sales of Electric Ovens, Gas Ovens and barbecue grills.
